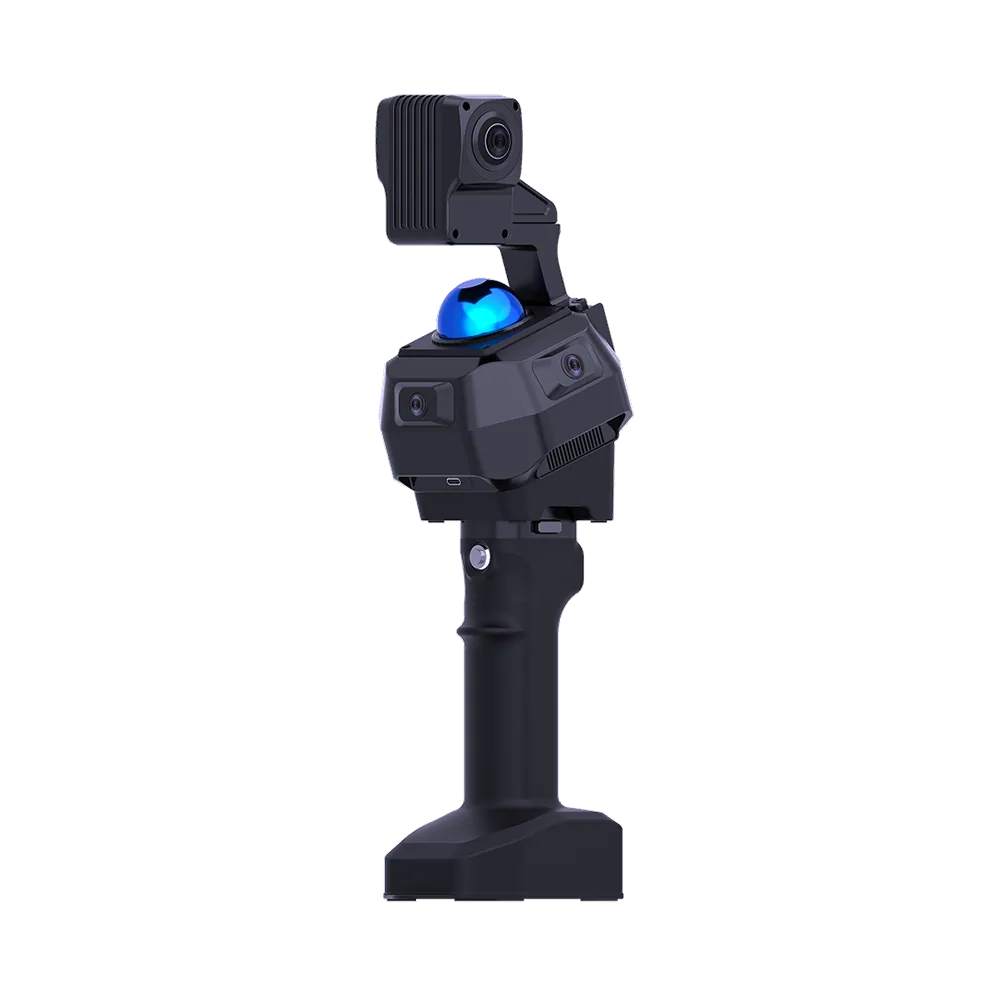

MindPalace Pocket2 Pro
Multimodal 3D environment acquisition and processing equipment
A professional 3D data acquisition and intelligent processing equipment with high precision
It integrates point cloud scanning, panoramic image acquisition and detail image recording. The equipment has a built-in high-performance MindSLAM™ algorithm to achieve real-time acquisition and processing of 3D data, significantly improving on-site operation efficiency.

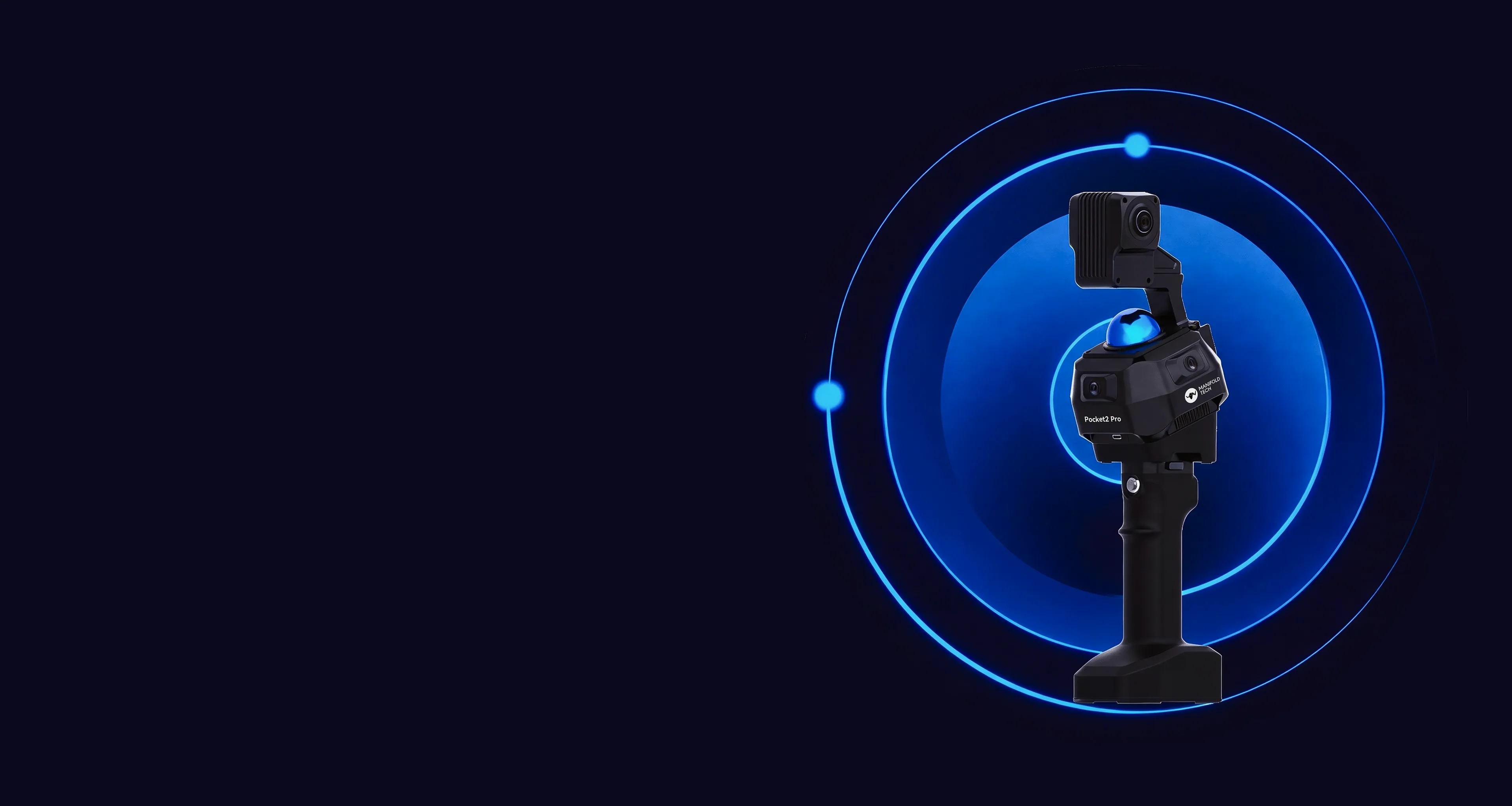

High-performance LiDAR fused with a three-lens vision system, building a stable foundation for 3D perception and reconstruction
- ·Equipped with high-precision LiDAR and three global-shutter cameras, it generates accurate, true-color, dense 3D point clouds in real time
- ·Even in degraded environments such as darkness, no light, or no texture, it still delivers excellent mapping stability and positioning accuracy
Capture once, generate multiple outcomes — comprehensive support for digital results
Pocket2 Pro can complete real-time acquisition and processing of multimodal data such as high-precision true-color dense point clouds, high-resolution panoramic images and videos, and detail photos at one time.

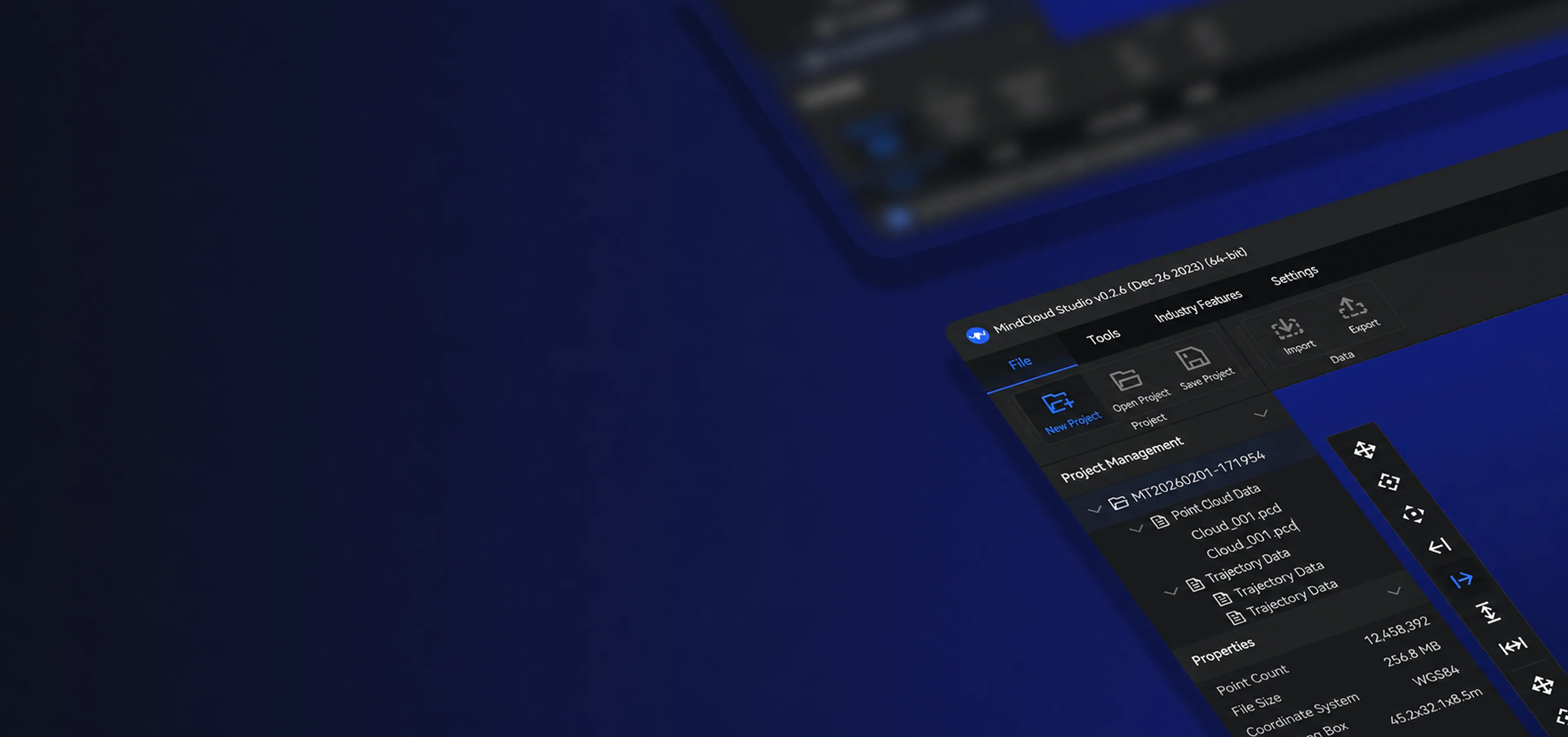

Powered by the MindCloud platform, 3D data seamlessly flows into a structured results generation pipeline
Eliminating manual steps, MindCloud delivers instant, ready-to-use data with a true WYSIWYG experience, achieving a universal, rapid, and practical closed-loop digital twin production process.
Technical Specifications
| Item | Specification |
|---|---|
| Dimensions | 4.5 × 4.5 × 8.1 in (114 × 114 × 207 mm) |
| Device Weight | 2.12 lb (962 g) |
| Handle Battery Weight | 1.05 lb (476 g) |
| Operating Temperature | 14°F to 104°F (-10°C to 40°C) |
| Data Interface | USB 3.0 |
| Storage | SSD: 256 GB, 512 GB, 1TB |
| Battery Life (Single Battery) | Around 120 minutes |
| Point Cloud Accuracy | Better than 0.4 in (≤ 1 cm) |
| Camera Configuration | · 3 × 2 MP Global Shutter Cameras · 2 × 12 MP High-Res Top-Mounted Cameras |
| Laser Wavelength | 905 nm |
| Laser Channels | 40 channels |
| Point Density | 200,000 points/sec |
| Measurement Range | 131 ft @ 10% reflectivity / 230 ft @ 80% reflectivity (40 m / 70 m) |
| MindCloud Software Suite | · MindCloud Studio (PC · Local Professional Processing) · MindCloud Go (Mobile · On-site Viewing & Uploading) · MindCloud Render (PC · Gaussian Rendering Software) · MindCloudX.AI (Cloud · Multi-core Computing & Deep Application Platform) |
